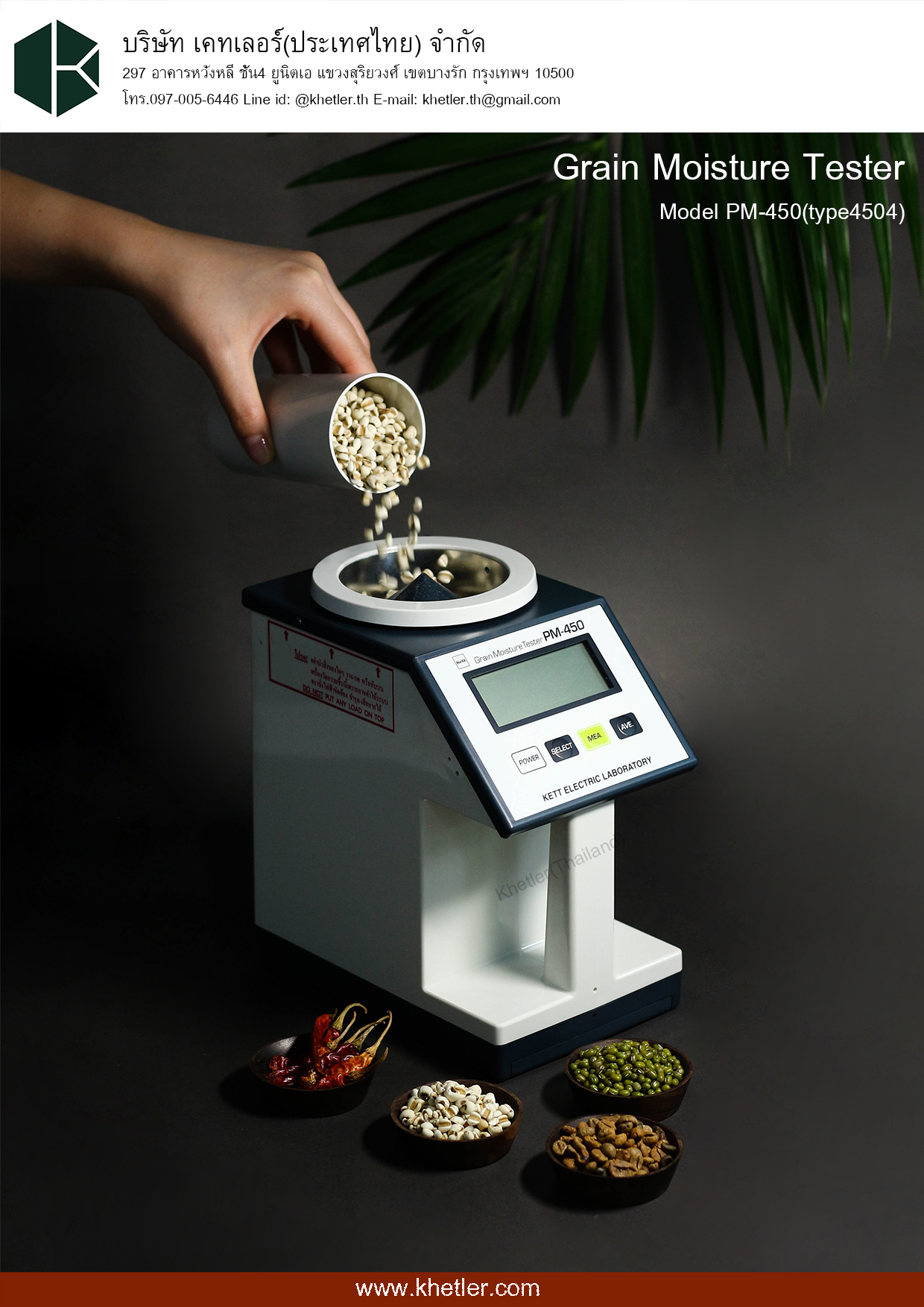

Grain Moisture Tester PM-450 (Type 4522)

The PM-450 Version 4522 is an accurate grain moisture analyzer designed in accordance with international standards of moisture analysis. It measures the moisture content of a wide range of grains, beans, nuts, oilseeds, and spices.

The instrument provides non-destructive measurement by simply pouring a sample into the measuring chamber and features automatic weight compensation for accurate measurement.

Key Features

  • 34 Measurement Programs — Supports moisture measurement for a wide variety of grains, seeds, beans, nuts, oilseeds, coffee, and spices.
  • Wide Measurement Range — Measures moisture content from 1% to 40%, depending on the selected product.
  • Quick, Non-Destructive Measurement — Simply pour the sample into the measuring chamber without grinding or damaging it.
  • Automatic Weight Compensation — Uses an integrated weighing scale to compensate for sample weight variations.
  • Automatic Temperature Compensation — Uses a thermistor to compensate for temperature variations.
  • Average Value Calculation — Calculates the average of 2–9 measurements.
  • Digital LCD Display — Displays the selected product program and moisture measurement results.
  • Simple Operation — Designed for convenient moisture testing in laboratories, purchasing stations, and field applications.
  • Portable Design — Compact and lightweight for easy transportation and on-site inspection.
  • Automatic Power-Off — Turns off automatically after a period of inactivity to conserve battery power.


Specifications

Item

Specification

Model

PM-450 Type 4522

Measuring Method

Capacitance (Dielectric), 50 MHz

Applications

Grains, seeds, beans, nuts, oilseeds, coffee, and spices

Measurement Programs

34 product programs

Measurement Range

1–40%, depending on the selected product

Accuracy

Standard error of 0.5% or less versus the drying method for samples with moisture content below 20%

Sample Volume

240 mL

Weight Compensation

Automatic, using integrated weighing scale

Temperature Compensation

Automatic, using thermistor

Display

Digital LCD

Resolution

0.1%

Average Function

Average of 2–9 measurements

Operating Temperature

0–40°C

Power Supply

4 × 1.5 V AA batteries

Power Consumption

240 mW

Dimensions

125 (W) × 205 (D) × 215 (H) mm

Net Weight

Approx. 1.3 kg

Standard Accessories

  • Manual Hopper (Sample Cup) x 1
  • Funnel x 1
  • Cleaning Brush x 1
  • 1.5 V AA Alkaline Batteries x 4
  • Operating Manual x1
  • Inspection Certificate × 1


Measurement Programs

No.

Product

Measurement Range

01

Wheat

6–40%

02

Barley

6–40%

03

Soybean

6–30%

04

Canola (Rapeseed)

6–30%

05

Rye

6–30%

06

Oats

6–30%

07

Sorghum

6–30%

08

Sunflower (Large)

6–30%

09

Sunflower (Medium)

4–20%

10

Sunflower (Small)

6–20%

11

Hazelnuts

4–15%

12

Peanuts

4–20%

13

Black Pepper

5–17%

14

Mung Bean

6–30%

15

Beans

6–30%

16

Pea

6–35%

17

Clove

6–20%

18

Dry Cherry Coffee

4–40%

19

Green Coffee

4–30%

20

Roast Coffee

1–20%

21

Parchment Coffee — Arabica

4–40%

22

Parchment Coffee — Robusta

4–40%

23

Pearl Barley

6–40%

24

Pearl Barley Hulled

6–20%

25

Azuki

6–30%

26

Cacao

4–30%

27

Roast Cacao

1–8%

28

Almond

2–18%

29

Pistachio Nuts

4–20%

30

Crushed Peanuts

1–20%

31

Granola

2–16%

32

Cereal Flakes

6–20%

33

Red Pepper (2018)

5–17%

34

White Pepper (2018)

5–17%
